Grinding Machines

DEMAN Grinding Machines for Flat Glass

are manufactured according to German technology and have a modern design.

We build different types of Grinding Machines:
Double-sided C-Edge Grinding Machines,
Double-sided T-Edge Grinding Machines,
Double-sided Combi Grinding Machines,
Double-sided CNC Grinding Machines and
Narrow Glass Edge Grinding Machines.

We offer Grinding Machines for many applications:
Flat Glass Grinding Machines, Furniture Glass Grinding Machines,
Architectural Glass Grinding Machines, Insulated Glass Grinding Machines,
Solar Glass Grinding Machines and Custom Glass Grinding Machines for special applications.

Horizontal Processing

Double-sided C-Edge Grinding Line

DEMAN corner cutting system guarantees stability and accuracy of the corner even at high speeds.

Suitable for flat glass, furniture glass and solar glass

Processing speed: 0-12m/min

Minimum glass size: 150x150mm

Maximal glass size: 3200x2800mm

Size tolerance: +/-0,1mm

Diagonal tolerance: +/-0,2mm/m

Double-sided Flat Edge Grinding Line

DEMAN corner cutting system guarantees stability and accuracy of the corner even at high speeds.

Suitable for flat glass, furniture glass, solar glass and insulated glass

Processing speed: 0-8m/min – 0-28m/min

Minimal glass size: 150x250mm

Maximal glass size: 3200x8000mm

Size tolerance: +/-0,1mm

Diagonal tolerance: +/-0,2mm/m

Double-sided Combi Grinding Line

Suitable for flat glass, furniture glass, solar glass and insulating glass

Processing speed: 0-8m/min

Minimal glass size: 60x150mm

Maximal glass size: 1600x2500mm

Size tolerance: +/-0,1mm

Diagonal tolerance: +/-0,2mm/m

Double-sided Narrow Glass Grinding Line

DEMAN corner cutting system guarantees stability and accuracy of the corner even at high speeds.

Suitable for flat glass, furniture glass and glass for household appliances.

Processing speed: 0-8m/min

Minimal glass size: 58x100mm

Maximal glass size: 200x3000mm

Size tolerance: +/-0,1mm

Diagonal tolerance: +/-0,2mm/m

Vertical Processing

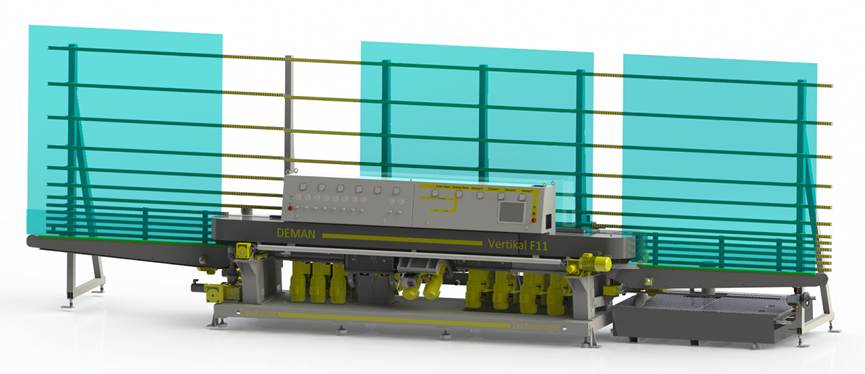

Flat Edge Single Edgers

Heavy-duty vertical single edger built for flat edge glass processing.
Precision with less adjustment – Servo-controlled spindle positioning.
Energy-efficient processing – Smart functions minimize energy use.
Quicker setup after wheel replacement – Automatic wheel calibration.

Suitable for rectangle and shaped glass

Compatible with DEMAN 7-axis robotic system and AGV/forklift transport rack for Autonomous processing.

With 8 / 10 / 12 / 14 spindles.
Optional corner cutting spindle.
Optional on-machine washing & drying zone.

Minimal glass size: 40 x 40 mm
Maximal glass height: 1000 … 3000+ mm
Glass thickness: 2 – 60 mm
Processing speed: 0.5 – 10 m/min

Seaming Machine

Heavy-duty vertical seaming machine with peripheral wheels. The machine is designed for fast and reliable glass processing with high-rpm spindle.
Suitable for rectangular and shaped glass

Minimal glass size: 150 x 650 mm (H x L)
Maximal glass size: 2000 x 3000 mm / 2600 x 4000 mm / 3000 x 4000 mm / 3300 x 6000 mm (H x L)
Glass thickness: 3 – 19 mm

Seaming, Grinding & Polishing Machine

Heavy-duty vertical seaming, grinding & polishing 3-in-1 machine with peripheral wheels. The machine is designed for fast and reliable glass processing with high-rpm spindle.
Suitable for rectangular and shaped glass

Minimal glass size: 300 x 900 mm (H x L)
Maximal glass size: 2000 x 3000 mm / 2600 x 4000 mm / 3000 x 4000 mm / 3300 x 6000 mm (H x L)
Glass thickness: 3 – 19 mm

Both machine types are compatible with DEMAN vertical washing machines.

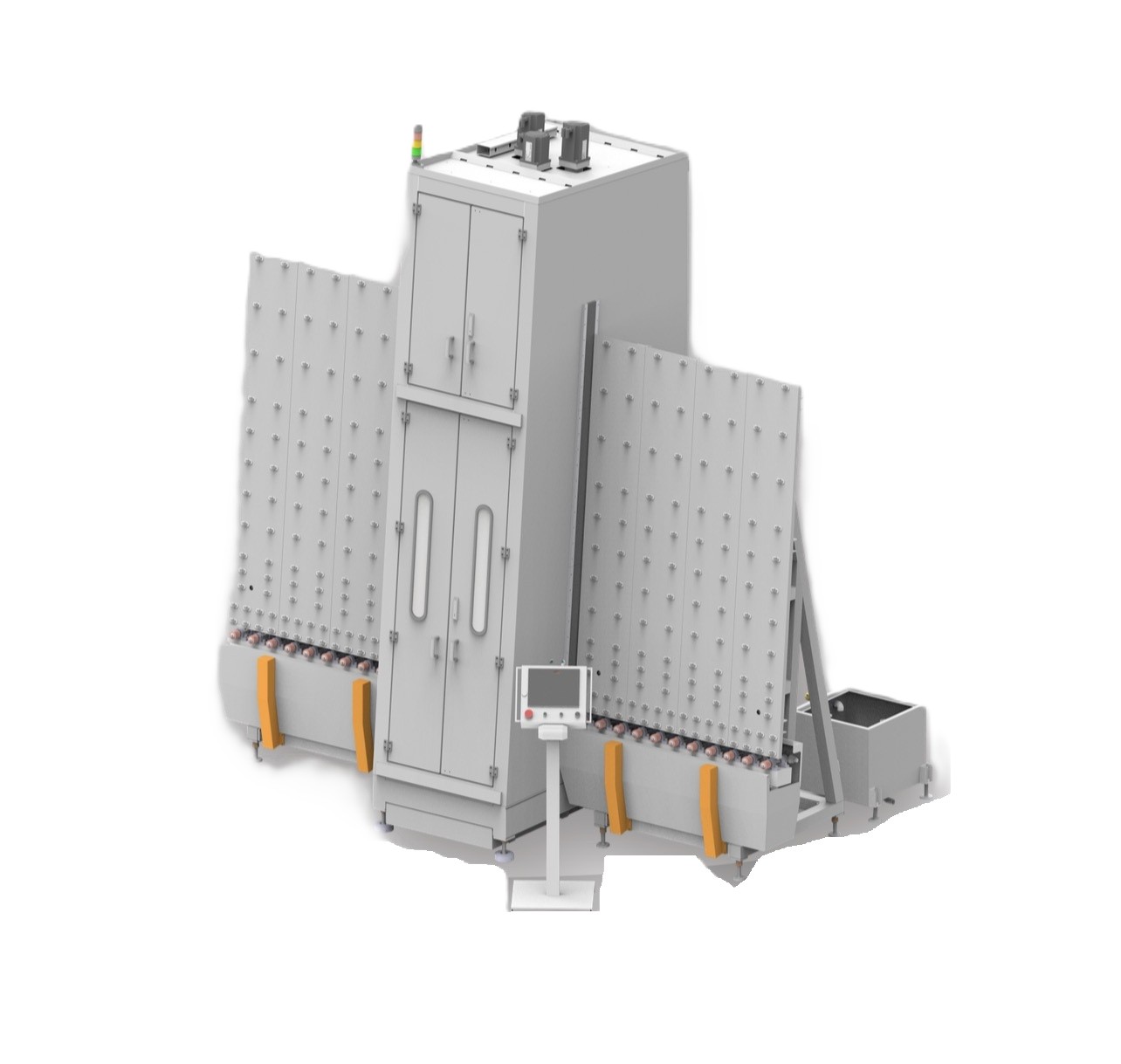

CNC ALL-IN-ONE Machine

Heavy-duty vertical CNC ALL-IN-ONE Machine, which is designed for flat glass seaming, grinding, polishing, drilling and milling.
Suitable for rectangular and shaped glass

Minimal glass size: 350 x 650 mm (H x L)
Maximal glass size: 2000 x 3000 mm / 2600 x 4000 mm / 3000 x 4000 mm / 3300 x 6000 mm (H x L)
Glass thickness: 3 – 19 mm

Compatible with DEMAN vertical washing machines.
